High Frequency Portable Medical X Ray Equipment With Led Display

Name: High Frequency Portable Medical X Ray Equipment With Led Display
Brand: Mecan
Price: 1 USD

China High Frequency Portable Medical X Ray Equipment With Led Display wholesale

Brand Name : Mecan

Model Number : MCX-P40-R-B

Certification : ISO

Place of Origin : Guangzhou

MOQ : 1 set

Price : USD1-5999/set

Payment Terms : L/C, T/T, Western Union, MoneyGram,Cash

Supply Ability : 1000 sets/month

Delivery Time : 3-15 working days

Packaging Details : Carton

Item : Portable X Ray Machine

Maximum output power : 4kW

Nominal power : 100kV, 40mA, 0.1s, 4kW

Frequency : 50/60Hz±1Hz

Voltage : AC220V±22V

Power capacity : ≥5kVA

Inner resistance : ≤0.5Ω

X-ray tube : Focus: 0.6/1.5mm; Anode heat capacity: 76kHU

Contact Now

High Frequency Portable Medical X Ray Equipment With Led Display

Model:MCX-P40-R-B

1. Application

4kW digital portable medical diagnosis high frequency X-ray machine, used for human limbs checking and diagnosing, especially in the wild places, battlefield flow, playground, pet clinic, and rescue diagnosis etc.

2. Characteristics of our X-ray machine

1) Deft and concise.

2) 6 periods of digital LED display.

3) 24 kinds of presupposed anatomy memory pattern choices.

4) Accuracy control method of simulation and double digital loops.

5) High precision control of tube voltage, tube current.

6) Failure self-protection, self-diagnosis.

3. Dimension

(1) X-ray machine head (length × width × height): 442mm × 347mm × 230mm

(2) Machine stand (length × width × height): 1060 mm × 790 mm × 2210 mm

4. Parameters

Model	MCX-P40-R-B
Input power	Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA Inner resistance: ≤0.5Ω
Maximum output power	P =110kV×36mA=4kW
Nominal power	100kV, 40mA, 0.1s, 4kW
Frequency	≥40kHz
kV adjusting range	40kV～110kV, continuous adjustment step 1 kV
mA adjusting range	36mA～70mA
mAs adjusting range	1mAs-200mAs, shifted adjustment
s adjusting range	0.04s～3.2s
X-ray tube	Focus: 0.6/1.5mm; Anode heat capacity: 76kHU
X-ray machine Size	290×260×230 mm
Weight	18.8kg
Accessories	1.remote control 2.aluminum box 3.machine frame

5.Image

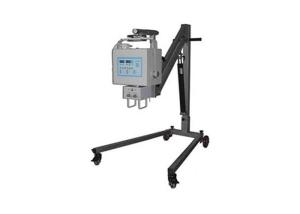

High Frequency Portable Medical X Ray Equipment With Led Display
